Active Power Filters: Safeguarding Power Quality in Demanding Environments
Modern industrial facilities, data centers, and commercial buildings rely increasingly on non-linear loads such as Variable Frequency Drives (VFDs), Uninterruptible Power Supplies (UPS), and energy-efficient lighting. While critical for operations, these devices can inject harmonic currents into the electrical grid, leading to a degradation of power quality. This harmonic distortion can negatively impact equipment performance, reduce energy efficiency, and potentially compromise system reliability and safety.

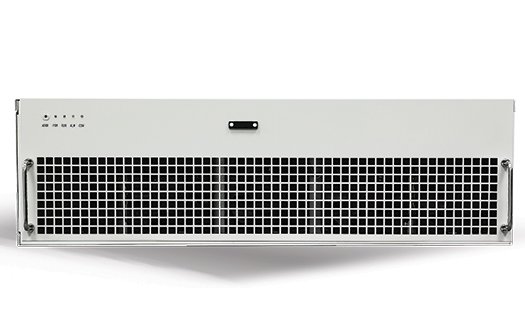

Active Power Filters (APFs) provide a dynamic and effective solution to these challenges. These sophisticated power electronic devices actively monitor and mitigate power quality issues in real-time, acting as a comprehensive defense for your electrical infrastructure. APFs typically address three key areas
Active Harmonic Filtering (AHF): Precise Mitigation for Enhanced Power Quality
The Challenge : Non-linear loads (such as variable frequency drives, switching power supplies, and LED lighting) introduce harmonic currents into the electrical system. These harmonic currents distort the sinusoidal waveform, leading to a variety of problems, including increased power losses, equipment overheating, reduced equipment lifespan, and potential malfunctions.
The AHF Solution : Active Harmonic Filters (AHFs) provide a dynamic and effective solution. They operate by continuously monitoring the load current in real-time, identifying the specific frequencies and magnitudes of the harmonic components. The AHF then injects compensating currents that are equal in amplitude but 180 degrees out of phase with the targeted harmonics. This active cancellation process effectively neutralizes the harmonic currents, resulting in a significantly cleaner and more sinusoidal current waveform. By mitigating harmonics, AHFs improve overall power quality, enhance system efficiency, and protect sensitive equipment.
Static Var Generation (SVG)
The Problem : Inductive loads (like motors) draw lagging reactive power from the grid, reducing the system's power factor. This leads to inefficient energy use and higher electricity bills.
The Solution : APFs, acting as SVGs, can rapidly generate or absorb reactive power on demand. By supplying the required reactive power locally, they improve the power factor, enhancing the system's efficiency and reducing costs. SVG can work with an Intelligent capacitor which is working in step to achieve 1.0 power factor target. SVG is a stepless reactive power supply.
Seamless Reactive Power Control: APFs as Static Var Generators (SVGs)
A key challenge in industrial settings is managing reactive power, which is essential for equipment operation but contributes to inefficient energy use. Active Power Filters (APFs), functioning as Static Var Generators (SVGs), provide an elegant solution.
Here's how they optimize reactive power control
On-Demand Reactive Power : Unlike traditional capacitor banks, SVGs rapidly generate or absorb reactive power as needed. This dynamic response ensures the system always receives the precise amount of reactive power it requires, no more, no less.
Improved Power Factor : By supplying lagging reactive power locally, SVGs effectively counteract the negative effects of inductive loads, bringing the power factor closer to unity (the ideal value of 1.0). This optimizes energy use, reduces energy waste, and lowers electricity costs.
Seamless Integration with Intelligent Capacitors : SVGs often work in tandem with intelligent capacitors. The SVG provides fast, dynamic reactive power compensation, while the intelligent capacitor handles the base reactive power requirement, ensuring a smooth and precise approach to achieving a unity power factor.
Stepless Control for Precision : SVGs are not limited by discrete steps like traditional capacitor banks. They provide stepless, continuous reactive power adjustment, ensuring highly accurate and stable power factor correction.
In essence : APFs acting as SVGs provide a flexible, efficient, and precise method for reactive power control, leading to improved power factor, reduced energy consumption, and lower operating costs in industrial environments.
CBC Power Quality Filter Solutions
Static Power Compensation/Three-Phase Balancing
The Problem : In three-phase systems, uneven loading across phases can lead to current imbalances. This imbalance puts extra stress on neutral conductors, reduces efficiency, and can even damage equipment.
The Solution : APFs can act as intelligent load balancers. They continuously monitor current in each phase, rectifying any imbalances by redistributing current flow and ensuring a balanced three-phase system.
In essence
Active Power Filters are versatile devices that address multiple power quality challenges, including harmonic mitigation, reactive power compensation, and load balancing. By dynamically analyzing and responding to real-time power system conditions, APFs ensure a cleaner, more efficient, and more reliable electrical supply, which is crucial for today's demanding industrial environments.
